PRACTICA 2
1.- Dibuja un cuadro rojo sólido
FUENTE
FUENTE
martes, 21 de febrero de 2017
lunes, 20 de febrero de 2017
Ajedrez Google
//GERMAN INIESTA SANCHEZ
//GRAFICACION
//AJEDREZ GOOGLE
#include <windows.h>
#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include <GL/glut.h>
#define LONG_LADO 10 //longitud del lado del cuadrado
#define TRANS_X 2.5
#define TRANS_Y 7.5
#define TRANS_Z 0.0
#define SCALA_G 0.05
float radio = 1, a1, a2;
float nx, ny, r, g, b, dx, dy, pi = 3.141592653;
float trasX = TRANS_X, trasY = TRANS_Y, trasZ = TRANS_Z;
int puntos = 0, an = 500, al = 500, tam_px = 1;
int rot = 0, tx = 0, ty = 0;
void circulo(float cx, float cy, float radio, float r, float g, float b, float a1, float a2){
glBegin(GL_POLYGON);
glColor3f(r, g, b);
glVertex2f(cx, cy);
for (float i = a1; i<a2; i += 0.01)
{
dx = radio*cos(i) + cx;
dy = radio*sin(i) + cy;
glVertex2f(dx, dy);
}
glEnd();
}
//CREANDO EL TABLERO DE AJEDREZ
void tablero(){
for (int colum = 0; colum < 10; colum++){
for (int fila = 0; fila < 10; fila++){
bool edo = true;
if ((colum > 0 && colum < 9) && (fila > 0 && fila < 9)){
if (colum % 2 != 0){//x impar
if (fila % 2 != 0){//x impar
glColor3f(0, 0, 0);//negro
}
else{//x par
glColor3f(1, 1, 1);//blanco
}
}
else{//x par
if (fila % 2 != 0){//x impar
glColor3f(1, 1, 1);//blanco
}
else{//x par
glColor3f(0, 0, 0);//negro
}
}
}
else{
glColor3f(1, 0.4, 0);
}
glBegin(GL_QUADS);
glVertex2i(colum, fila);
glVertex2i(colum, fila + 1);
glVertex2i(colum + 1, fila + 1);
glVertex2i(colum + 1, fila);
glEnd();
}
}
}
//DIBUJANDO LA G DE GOOGLE
void dibujarG(){
int cx = 0; int cy = 0;
circulo(cx, cy, 5, 0.858, 0.196, 0.211, 0.7854, 2.7);
circulo(cx, cy, 5, 0.956, 0.76, 0.05, 2.65, 3.65);
circulo(cx, cy, 5, 0.235, 0.73, 0.33, 3.65, 5.49);
circulo(cx, cy, 5, 0.282, 0.52, 0.93, 5.48, 2 * 3.22);
circulo(cx, cy, 3, 1, 1, 1, 0, 2 * 3.1416);
glColor3f(0.282, 0.52, 0.93);
glBegin(GL_TRIANGLE_FAN);
glVertex2f(0 + cx, 0.8 + cy); glVertex2f(4.98 + cx, 0.8 + cy);
glVertex2f(4.93 + cx, -1 + cy); glVertex2f(0 + cx, -1 + cy);
glEnd();
}
void display(void){
glClear(GL_COLOR_BUFFER_BIT);
glPushMatrix();
tablero();
glPopMatrix();
glPushMatrix();
glTranslatef(trasX, trasY, trasZ);//x,y,z
glScalef(SCALA_G, SCALA_G, SCALA_G);
dibujarG();
glPopMatrix();
glFlush();
}
// MOVIMIENTOS CON TECLADO
void key(unsigned char c, int x, int y)
{
switch (c){
case 27: //ESC
exit(0);
break;
case 'w'://Arriba
if (trasY < 8){
trasY += 1;
}
break;
case 's'://Abajo
if (trasY > 2){
trasY -= 1;
}
break;
case 'a'://izquierda
if (trasX > 2){
trasX -= 1;
}
break;
case 'd'://derecha
if (trasX < 8){
trasX += 1;
}
break;
case 'r'://reset
trasX = TRANS_X;
trasY = TRANS_Y;
trasZ = TRANS_Z;
break;
}
display();
}
void Init()
{
glClearColor(1.0, 1.0, 1.0, 0);
gluOrtho2D(0, 10, 0, 10);
glPointSize(tam_px);
glEnable(GL_POINT_SMOOTH);
}
int main(int argc, char **argv)
{
glutInit(&argc, argv);
glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
glutInitWindowPosition(600, 200);
glutInitWindowSize(an, al);
glutCreateWindow("Ajedrez Google");
Init();
glutDisplayFunc(display);
glutKeyboardFunc(key);
glutMainLoop();
return 0;
}
Tablero de ajedrez
Tablero de Ajedrez
Ricardo Alvarez Hernandez
Código
#include <windows.h>
#include <stdlib.h>
#include <math.h>
#include <stdio.h>
#include <C:\GLUT\include\GL\glut.h>
#include <stdlib.h>
float radio=1,a1,a2;
float nx,ny,r,g,b,dx,dy,pi=3.141592653;
float trasX = 1.5, trasY = 1.5, trasZ = 0,escala=0.05;
int puntos=0, ancho=500,alto=500,tam_px=1;
int rot = 0,tx=0,ty=0;
void circulo(float cx,float cy,float radio,float r,float g,float b,float a1,float a2){
glBegin(GL_POLYGON);
glColor3f(r,g,b);
glVertex2f(cx, cy);
for (float i=a1; i<a2; i+=0.01)
{
dx=radio*cos(i)+cx;
dy=radio*sin(i)+cy;
glVertex2f(dx, dy);
}
glEnd();
}
void tablero(){
for(int colum = 1; colum < 9; colum++){
for(int fila = 1; fila < 9; fila++){
bool edo = true;
if((colum > 0 && colum < 9) && (fila > 0 && fila < 9)){
if(colum%2 != 0){//x impar
if(fila%2 != 0){//x impar
glColor3f(0,0,0);//negro
}else{//x par
glColor3f(1,1,1);//blanco
}
}else{//x par
if(fila%2 != 0){//x impar
glColor3f(1,1,1);//blanco
}else{//x par
glColor3f(0,0,0);//negro
}
}
}else{
glColor3f(1,0,0);
}
glBegin(GL_QUADS);
glVertex2i(colum, fila);
glVertex2i(colum, fila + 1);
glVertex2i(colum + 1,fila + 1);
glVertex2i(colum + 1,fila);
glEnd();
glBegin(GL_LINE_STRIP);
glVertex2i(1,1);
glVertex2i(9,1);
glVertex2i(9,9);
glVertex2i(1,9);
glVertex2i(1,1);
glEnd();
}
}
}
void Google(){
int cx=0;int cy=0;
circulo(cx,cy,5,0.858,0.196,0.211,0.7854,2.7);
circulo(cx,cy,5,0.956,0.76,0.05,2.65,3.65);
circulo(cx,cy,5,0.235,0.73,0.33,3.65,5.49);
circulo(cx,cy,5,0.282,0.52,0.93,5.48,2*3.22);
circulo(cx,cy,3,1,1,1,0,2*3.1416);
glColor3f(0.282,0.52,0.93);
glBegin(GL_TRIANGLE_FAN);
glVertex2f(0+cx,0.8+cy);glVertex2f(4.98+cx,0.8+cy);
glVertex2f(4.93+cx,-1+cy);glVertex2f(0+cx,-1+cy);
glEnd();
}
void display(void){
glClear(GL_COLOR_BUFFER_BIT);
glPushMatrix();
tablero();
glPopMatrix();
glPushMatrix();
glTranslatef(trasX, trasY, trasZ);//x,y,z
glScalef(escala, escala, escala);
Google();
glPopMatrix();
glFlush();
}
void key(unsigned char c, int x, int y)
{
switch(c){
case 27: //ESC
exit(0);
break;
case 'w'://mover a la Arriba
if(trasY < 8){
trasY += 1;
}
break;
case 's'://mover a la Abajo
if(trasY > 2){
trasY -= 1;
}
break;
case 'a'://mover a la izquierda
if(trasX > 2){
trasX -= 1;
}
break;
case 'd'://mover a la derecha
if(trasX < 8){
trasX += 1;
}
break;
case 'r'://reset
trasX = 1.5;
trasY = 1.5;
trasZ = 0;
break;
}
display();
}
void Init()
{ glClearColor(1.0,1.0,1.0,0);
gluOrtho2D(0,10,0,10);
glPointSize(tam_px);
glEnable(GL_POINT_SMOOTH);
}
int main(int argc, char **argv)
{
glutInit(&argc,argv);
glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
glutInitWindowPosition(100,100);
glutInitWindowSize(ancho,alto);
glutCreateWindow("Tablero de Ajedrez");
Init();
glutDisplayFunc(display);
glutKeyboardFunc(key);
glutMainLoop();
return 0;
}
TAREA 4: Tablero de Ajedrez
TAREA 4: Tablero de Ajedrez
Por: Juan Angel Ortiz Contreras
#include <windows.h>
#include <C:\GLUT\include\GL\glut.h>
#include <stdlib.h>
#include <math.h>
float nx,ny,r,g,b,dx,dy,pi=3.141592653;
float radio=90,a1,a2,px = 0.5,py = 0.5, pz= 0.0;
int puntos=0, ancho=600,alto=600,tam_px=1;
int tx=0,ty=0;
void circulo(float cx,float cy,float radio,float r,float g,float b,float a1,float a2)
{
glBegin(GL_POLYGON);
glColor3f(r,g,b);
glVertex2f(cx, cy);
for (float i=a1; i<a2; i+=0.01)
{
dx=radio*cos(i)+cx;
dy=radio*sin(i)+cy;
glVertex2f(dx, dy);
}
glEnd();
}
void dibujar(){
int cx=0;int cy=0;
circulo(cx,cy,5,0.858,0.196,0.211,0.7854,2.7);
circulo(cx,cy,5,0.956,0.76,0.05,2.65,3.65);
circulo(cx,cy,5,0.235,0.73,0.33,3.65,5.49);
circulo(cx,cy,5,0.282,0.52,0.93,5.48,2*3.22);
circulo(cx,cy,3,1,1,1,0,2*3.1416);
glColor3f(0.282,0.52,0.93);
//Rectangulo de la G
glBegin(GL_TRIANGLE_FAN);
glVertex2f(0+cx,0.8+cy);glVertex2f(4.98+cx,0.8+cy);
glVertex2f(4.93+cx,-1+cy);glVertex2f(0+cx,-1+cy);
glEnd();
}
void tablero()
{
glPointSize(5);
int x=0,y=0,contador = 0,con = 0,var = 0,vary = 0,n;
while(con < 8)
{
if(con % 2 == 0)
{
while(contador < 8)
{
if(contador % 2 == 0)
{
glBegin(GL_TRIANGLE_STRIP);
glColor3f(0.0,0.0,0.0);
x = var;
y = vary;
glVertex2f(x,y);
x = var + 1;
y = vary;
glVertex2f(x,y);
x = var + 1;
y = vary + 1;
glVertex2f(x,y);
x = var;
y = vary + 1;
glVertex2f(x,y);
x = var;
y = vary;
glVertex2f(x,y);
glEnd();
}
else
{
glBegin(GL_TRIANGLE_STRIP);
glColor3f(255.0,255.0,255.0);
x = var;
y = vary;
glVertex2f(x,y);
x = var + 1;
y = vary;
glVertex2f(x,y);
x = var + 1;
y = vary + 1;
glVertex2f(x,y);
x = var;
y = vary + 1;
glVertex2f(x,y);
x = var;
y = vary;
glVertex2f(x,y);
glEnd();
}
contador++;
var = var + 1;
}
}
else
{
while(contador < 8)
{
if(contador % 2 == 0)
{
glBegin(GL_TRIANGLE_STRIP);
glColor3f(255.0,255.0,255.0);
x = var;
y = vary;
glVertex2f(x,y);
x = var + 1;
y = vary;
glVertex2f(x,y);
x = var + 1;
y = vary + 1;
glVertex2f(x,y);
x = var;
y = vary + 1;
glVertex2f(x,y);
x = var;
y = vary;
glVertex2f(x,y);
glEnd();
}
else
{
glBegin(GL_TRIANGLE_STRIP);
glColor3f(0.0,0.0,0.0);
x = var;
y = vary;
glVertex2f(x,y);
x = var + 1;
y = vary;
glVertex2f(x,y);
x = var + 1;
y = vary + 1;
glVertex2f(x,y);
x = var;
y = vary + 1;
glVertex2f(x,y);
x = var;
y = vary;
glVertex2f(x,y);
glEnd();
}
contador++;
var = var + 1;
}
}
con++;
contador = 0;
vary = vary + 1;
var = 0;
}
glEnd();
glFlush();
}
void display(void){
glClear(GL_COLOR_BUFFER_BIT);
glPushMatrix();
tablero();
glPopMatrix();
glPushMatrix();
glTranslatef(px,py,pz);
glScalef(0.05,0.05,0.05);
dibujar();
glPopMatrix();
glFlush();
}
void key(unsigned char c, int x, int y)
{
switch(c){
case 27:
exit(0);
break;
case 'w':
if(py < 7){
py += 1;
}
break;
case 's':
if(py > 1){
py -= 1;
}
break;
case 'a':
if(px > 1){
px -= 1;
}
break;
case 'd':
if(px < 7){
px += 1;
}
break;
}
display();
}
void miInicializacion()
{ glClearColor(1.0,1.0,1.0,0);
gluOrtho2D(0,8,0,8);
glPointSize(tam_px);
glEnable(GL_POINT_SMOOTH);
}
int main(int argc, char **argv)
{
glutInit(&argc,argv);
glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
glutInitWindowPosition(100,100);
glutInitWindowSize(ancho,alto);

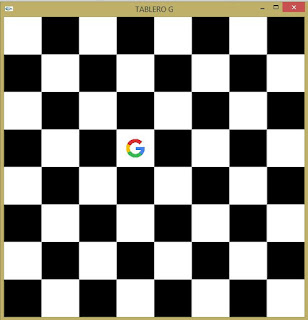

glutCreateWindow("TABLERO G");
miInicializacion();s
glutDisplayFunc(display);
glutKeyboardFunc(key);
glutMainLoop();
return 0;
}
PRACTICA 1: ROTACIÓN Y TRASLACIÓN
PRACTICA 1: ROTACIÓN Y TRASLACIÓN
#include <windows.h>#include <C:\GLUT\include\GL\glut.h>
#include <stdlib.h>
#include <math.h>
float cx=0,cy=0,lado=50;
float r,g,b,dx,dy,pi=3.141592653;
int ancho=500,alto=500,linea=8,inc=1,radio;
void cuadro(int lado, float r, float g, float b)
{
glColor3f(r,g,b);
glBegin(GL_TRIANGLE_FAN);
glVertex2f(lado, lado);glVertex2f(-lado, lado);
glColor3f(r,g-1,b);
glVertex2f(-lado, -lado);glVertex2f(lado, -lado);
glEnd();
}
void key(unsigned char c, int x, int y)
{
if (c==27){exit(0);}
if (c=='a'){inc = inc + 10;}
if (c=='s'){inc = inc - 10;}
glutPostRedisplay();
}
void circulo(float radio,float r,float g,float b,float m)
{
glBegin(GL_POLYGON);
glColor3f(r,g,b);
glVertex2f(cx, cy);
for (float i=0; i< m; i+=0.1)
{
dx=radio*cos(i)+cx;
dy=radio*sin(i)+cy;
glVertex2f(dx, dy);
}
glEnd();
}
void display(void)
{
glClear(GL_COLOR_BUFFER_BIT);
//SOL
glPushMatrix();
glRotatef(inc,0,0,1);
glPushMatrix();
cuadro(100,1.0,1.0,0.0);
glRotatef(45,0,0,1);
cuadro(100,1,1.0,0.0);
circulo(110,1,0.9,0,2*pi+0.1);
glPopMatrix();
glPopMatrix();
//NUBE
glPushMatrix();
glTranslatef(inc,0,1);
glTranslatef(100,-60,0);
circulo(45,1,1,1,pi);
glTranslatef(-30,30,0);
circulo(45,1,1,1,pi+0.7+0.1);
glTranslatef(-30,20,0);
circulo(45,1,1,1,pi+0.5);
glTranslatef(-20,-50,0);
circulo(45,1,1,1,pi);
glPopMatrix();
glPopMatrix();
glFlush();
}
void Init()
{ glClearColor(0.0,0.0,1.0,0);
gluOrtho2D(-ancho/2,ancho/2,-alto/2,alto/2);
}
int main(int argc, char **argv)
{
glutInit(&argc,argv);
glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
glutInitWindowPosition(100,100);
glutInitWindowSize(ancho,alto);
glutCreateWindow("SOLECITO");
Init();
glutDisplayFunc(display);
glutKeyboardFunc(key);
glutMainLoop();
return 0;
}
martes, 14 de febrero de 2017
Primitivas2D
/*
* GERMAN INIESTA SANCHEZ
* LOGO 1 Ying-Yang
*/
#include <windows.h>
#include <GL\glut.h>
#include <stdlib.h>
#include <math.h>
void display(void){
glClear(GL_COLOR_BUFFER_BIT);
int x = 0;
int y = 0;
glPointSize(2);
glColor3f(0.0, 0.0, 0.0);
//circunferencia principal
glBegin(GL_POINTS);
float j = 0;
while (j < 360){
x = 200 * cos(j);
y = 200 * sin(j);
glVertex2i(x, y);
j = j + 0.1;
}
glEnd();
glBegin(GL_POLYGON);
j = (3.1416);
while (j > 0){
y = 100 * cos(j) - 100;
x = 100 * sin(j);
glVertex2i(x, y);
j = j - 0.001;
}
j = (3.1416 / 2);
while (j < 4.8){
x = 100 * cos(j);
y = 100 * sin(j) + 100;
glVertex2i(x, y);
j = j + 0.001;
}
j = 3.1416 / 2;
while (j < 4.8){
x = 200 * cos(j);
y = 200 * sin(j);
glVertex2i(x, y);
j = j + 0.001;
}
glEnd();
glColor3f(255.0, 255.0, 255.0);
glBegin(GL_POLYGON);
j = 0;
while (j < 180){
x = 100 * cos(j);
y = 100 * sin(j) + 100;
glVertex2i(x, y);
j = j + 0.001;
}
glEnd();
//creamos los circulos internos
glColor3f(255.0, 255.0, 255.0);
glBegin(GL_POLYGON);
j = 0;
while (j < 180){
x = 40 * cos(j);
y = 40 * sin(j) - 100;
glVertex2i(x, y);
j = j + 0.001;
}
glEnd();
glColor3f(0, 0, 0);
glBegin(GL_POLYGON);
j = 0;
while (j < 180){
x = 40 * cos(j);
y = 40 * sin(j) + 100;
glVertex2i(x, y);
j = j + 0.001;
}
glEnd();
glFlush();
}
int main(int argc, char** argv){
glutInit(&argc, argv); //iniciar libreria glut
glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
glutInitWindowSize(768, 768); //inicializa el tamaño de la ventana
glutInitWindowPosition(100, 100); //posicion de la ventana
glutCreateWindow("Ying-Yang"); //crear la ventana
glClearColor(255, 255, 255, 0);
gluOrtho2D(-640, 640, -480, 480);
//indicamos a GLUT que la rutina utilizada como display
//este tipo de rutina se ejecuta una vez por ciclo de programa
//y sera la que realice todas las operaciones graficas (render)
glutDisplayFunc(display);
//ciclo de la aplicacion
glutMainLoop();
return 0;
}
/*
* GERMAN INIESTA SANCHEZ
* LOGO 2 Dominos
*/
#include <windows.h>
#include <GL\glut.h>
#include <stdlib.h>
#include <math.h>
void display(void){
glClear(GL_COLOR_BUFFER_BIT);
int x = 0;
int y = 0;
glPointSize(2);
glColor3f(0.0, 0.0, 255.0);
//creamos el cuadro azul
glBegin(GL_TRIANGLE_STRIP);
x = -200;
y = 0;
glVertex2i(x, y);
x = -400;
y = -200;
glVertex2i(x, y);
x = -200;
y = -400;
glVertex2i(x, y);
x = 0;
y = -200;
glVertex2i(x, y);
x = -200;
y = 0;
glVertex2i(x, y);
glEnd();
glColor3f(255.0, 0.0, 0.0);
//creamos el cuadro rojo
glBegin(GL_TRIANGLE_STRIP);
x = -150;
y = 50;
glVertex2i(x, y);
x = 50;
y = 250;
glVertex2i(x, y);
x = 250;
y = 50;
glVertex2i(x, y);
x = 50;
y = -150;
glVertex2i(x, y);
x = -150;
y = 50;
glVertex2i(x, y);
glEnd();
//circulo rojo
glColor3f(255.0, 255.0, 255.0);
glPointSize(3);
glBegin(GL_POINTS);
for (int i = 0; i <= 50; i++){
for (int j = 0; j < 360; j++){
x = i*cos(j) + 50;
y = i*sin(j) + 50;
glVertex2i(x, y);
}
}
glEnd();
//circulos azules
glPointSize(3);
glBegin(GL_POINTS);
for (int i = 0; i <= 50; i++){
for (int j = 0; j < 360; j++){
x = i * cos(j) - 120;
y = i * sin(j) - 200;
glVertex2i(x, y);
}
}
glEnd();
glPointSize(3);
glBegin(GL_POINTS);
for (int i = 0; i <= 50; i++){
for (int j = 0; j < 360; j++){
x = i * cos(j) - 280;
y = i * sin(j) - 200;
glVertex2i(x, y);
}
}
glEnd();
glFlush();
}
int main(int argc, char** argv){
glutInit(&argc, argv); //iniciar libreria glut
glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
glutInitWindowSize(768, 768); //inicializa el tamaño de la ventana
glutInitWindowPosition(100, 100); //posicion de la ventana
glutCreateWindow("Dominos"); //crear la ventana
glClearColor(255, 255, 255, 0);
gluOrtho2D(-640, 640, -480, 480);
//indicamos a GLUT que la rutina utilizada como display
//este tipo de rutina se ejecuta una vez por ciclo de programa
//y sera la que realice todas las operaciones graficas (render)
glutDisplayFunc(display);
//ciclo de la aplicacion
glutMainLoop();
return 0;
}
#include <windows.h>
#include <GL\glut.h>
#include <stdlib.h>
#include <math.h>
void display(void){
glClear(GL_COLOR_BUFFER_BIT);
int x = 0;
int y = 0;
glPointSize(2);
glColor3f(255.0, 0.0, 0.0);
//creamos el primer rombo
glBegin(GL_TRIANGLE_STRIP);
x = 0;
y = 360;
glVertex2i(x, y);
x = 160;
y = 180;
glVertex2i(x, y);
x = 0;
y = 0;
glVertex2i(x, y);
x = -160;
y = 180;
glVertex2i(x, y);
x = 0;
y = 360;
glVertex2i(x, y);
glEnd();
//creamos el rombo inferior izquierdo
glBegin(GL_TRIANGLE_STRIP);
x = 0;
y = 0;
glVertex2i(x, y);
x = -160;
y = -160;
glVertex2i(x, y);
x = -480;
y = -160;
glVertex2i(x, y);
x = -320;
y = 0;
glVertex2i(x, y);
x = 0;
y = 0;
glVertex2i(x, y);
glEnd();
//rombo inferior derecho
glBegin(GL_TRIANGLE_STRIP);
x = 0;
y = 0;
glVertex2i(x, y);
x = 160;
y = -160;
glVertex2i(x, y);
x = 480;
y = -160;
glVertex2i(x, y);
x = 320;
y = 0;
glVertex2i(x, y);
x = 0;
y = 0;
glVertex2i(x, y);
glEnd();
glFlush();
}
int main(int argc, char** argv){
glutInit(&argc, argv); //iniciar libreria glut
glutInitDisplayMode(GLUT_SINGLE | GLUT_RGB);
glutInitWindowSize(768, 768); //inicializa el tamaño de la ventana
glutInitWindowPosition(100, 100); //posicion de la ventana
glutCreateWindow("Mitsubishi"); //crear la ventana
glClearColor(255, 255, 255, 0);
gluOrtho2D(-640, 640, -480, 480);
//indicamos a GLUT que la rutina utilizada como display
//este tipo de rutina se ejecuta una vez por ciclo de programa
//y sera la que realice todas las operaciones graficas (render)
glutDisplayFunc(display);
//ciclo de la aplicacion
glutMainLoop();
return 0;
}
lunes, 13 de febrero de 2017
Tarea 3 Ricardo Alvarez Hernandez
Tarea 3
Ricardo Alvarez Hernandez
Codigo
#include <windows.h>
#include <C:\GLUT\include\GL\glut.h>
#include <stdlib.h>
#include <math.h>
void displaytri(void)
{
glClear(GL_COLOR_BUFFER_BIT);
glPointSize(1);
glColor3f(1.0,0.0,0.0);
float x=0;
float y=0;
glBegin(GL_TRIANGLES);
x = 1;
y = 1;
glVertex2i(x,y);
x = 5;
y = 1;
glVertex2i(x,y);
x = 3;
y = 4;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 3;
y = 4;
glVertex2i(x,y);
x = 5;
y = 1;
glVertex2i(x,y);
x = 7;
y = 4;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 7;
y = 4;
glVertex2i(x,y);
x = 9;
y = 1;
glVertex2i(x,y);
x = 11;
y = 4;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 9;
y = 1;
glVertex2i(x,y);
x = 13;
y = 1;
glVertex2i(x,y);
x = 11;
y = 4;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 7;
y = 4;
glVertex2i(x,y);
x = 5;
y = 7;
glVertex2i(x,y);
x = 9;
y = 7;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 7;
y = 10;
glVertex2i(x,y);
x = 5;
y = 7;
glVertex2i(x,y);
x = 9;
y = 7;
glVertex2i(x,y);
glEnd();
glFlush();
}
int main(int argc, char **argv)
{
glutInit(&argc,argv);
glutInitWindowSize(600,600);
glutInitWindowPosition(10,50);
glutCreateWindow("Logos");
glClearColor(255.0,255.0,255.0,0);
gluOrtho2D(0,14,0,14);
glutDisplayFunc(displaytri);
glutMainLoop();
return 0;
}
Imagen:
Ricardo Alvarez Hernandez
Logo Mitsubishi
#include <windows.h>
#include <C:\GLUT\include\GL\glut.h>
#include <stdlib.h>
#include <math.h>
void displaytri(void)
{
glClear(GL_COLOR_BUFFER_BIT);
glPointSize(1);
glColor3f(1.0,0.0,0.0);
float x=0;
float y=0;
glBegin(GL_TRIANGLES);
x = 1;
y = 1;
glVertex2i(x,y);
x = 5;
y = 1;
glVertex2i(x,y);
x = 3;
y = 4;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 3;
y = 4;
glVertex2i(x,y);
x = 5;
y = 1;
glVertex2i(x,y);
x = 7;
y = 4;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 7;
y = 4;
glVertex2i(x,y);
x = 9;
y = 1;
glVertex2i(x,y);
x = 11;
y = 4;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 9;
y = 1;
glVertex2i(x,y);
x = 13;
y = 1;
glVertex2i(x,y);
x = 11;
y = 4;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 7;
y = 4;
glVertex2i(x,y);
x = 5;
y = 7;
glVertex2i(x,y);
x = 9;
y = 7;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLES);
glColor3f(1.0,0.0,0.0);
x = 7;
y = 10;
glVertex2i(x,y);
x = 5;
y = 7;
glVertex2i(x,y);
x = 9;
y = 7;
glVertex2i(x,y);
glEnd();
glFlush();
}
int main(int argc, char **argv)
{
glutInit(&argc,argv);
glutInitWindowSize(600,600);
glutInitWindowPosition(10,50);
glutCreateWindow("Logos");
glClearColor(255.0,255.0,255.0,0);
gluOrtho2D(0,14,0,14);
glutDisplayFunc(displaytri);
glutMainLoop();
return 0;
}
Imagen:
Logo de Dominos
Codigo:
#include <windows.h>
#include <C:\GLUT\include\GL\glut.h>
#include <stdlib.h>
#include <math.h>
void displayDom(void)
{
glClear(GL_COLOR_BUFFER_BIT);
int x,y;
glPointSize(10);
glColor3f(0.0,0.0,255.0);
glBegin(GL_TRIANGLE_STRIP);
x =1;
y = 150;
glVertex2i(x,y);
x =150;
y = 1;
glVertex2i(x,y);
x =300;
y =150;
glVertex2i(x,y);
x =150;
y =300;
glVertex2i(x,y);
x =1;
y = 150;
glVertex2i(x,y);
glEnd();
//***********Parte azul
int a=0;
int b=0;
glPointSize(5);
glColor3f(255.0,255.0,255.0);
glBegin(GL_POINTS);
double radio = 35;
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
a = radio*cos(i)+80;
b = radio*sin(i)+150;
glVertex2i(a,b);
}
radio = radio - 1;
}
glBegin(GL_POINTS);
radio = 35;
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
a = radio*cos(i)+ 220;
b = radio*sin(i)+150;
glVertex2i(a,b);
}
radio = radio - 1;
}
glEnd();
//Parte roja
glPointSize(10);
glColor3f(210.0,0.0,0.0);
glBegin(GL_TRIANGLE_STRIP);
x =325;
y =175;
glVertex2i(x,y);
x =474;
y =324;
glVertex2i(x,y);
x =324;
y =474;
glVertex2i(x,y);
x =175;
y =325;
glVertex2i(x,y);
x =325;
y =175;
glVertex2i(x,y);
glEnd();
a=0;
b=0;
glPointSize(5);
glColor3f(255.0,255.0,255.0);
glBegin(GL_POINTS);
radio = 35;
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
a = radio*cos(i)+ 324;
b = radio*sin(i)+ 324;
glVertex2i(a,b);
}
radio = radio - 1;
}
glEnd();
glFlush();
}
int main(int argc, char **argv)
{
glutInit(&argc,argv);
glutInitWindowSize(600,600);
glutInitWindowPosition(10,50);
glutCreateWindow("Logos");
glClearColor(255.0,255.0,255.0,0);
gluOrtho2D(0,600,0,600);
glutDisplayFunc(displayDom);
glutMainLoop();
return 0;
}
Imagen:
TAREA 3: PRIMITIVAS 2D
TAREA 3: PRIMITIVAS 2D
POR: Juan Angel Ortiz Contreras
YIN-YANG
/*JUAN ANGEL ORTIZ CONTRERAS*/#include <windows.h>
#include <C:\GLUT\include\GL\glut.h>
#include <stdlib.h>
#include <math.h>
void display(void)
{
glClear(GL_COLOR_BUFFER_BIT);
int y=0;
int x=0;
glPointSize(5);
glColor3f(0.0,0.0,0.0);
//CIRCULO PRINCIPAL
glBegin(GL_POINTS);
for(int i=0; i < 360; i =i + 1)
{
x = 400*cos(i);
y = 400*sin(i);
glVertex2i(x,y);
}
glEnd();
double radio = 200;
//CIRCULO NEGRO
glBegin(GL_POINTS);
while(radio >= 80)
{
for(int i=0; i < 360; i =i + 1)
{
x = radio*cos(i)-10;
y = radio*sin(i) - 200;
glVertex2i(x,y);
}
radio = radio-10;
}
glEnd();
radio = 200;
glBegin(GL_POINTS);
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
x = radio*cos(i)+75;
y = radio*sin(i) - 184;
glVertex2i(x,y);
}
radio = radio-10;
}
glEnd();
radio = 200;
glBegin(GL_POINTS);
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
x = radio*cos(i)+160;
y = radio*sin(i) - 128;
glVertex2i(x,y);
}
radio = radio-10;
}
glEnd();
radio = 200;
glBegin(GL_POINTS);
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
x = radio*cos(i)+ 200;
y = radio*sin(i) - 27;
glVertex2i(x,y);
}
radio = radio-10;
}
glEnd();
radio = 200;
glBegin(GL_POINTS);
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
x = radio*cos(i)+ 190;
y = radio*sin(i) + 60;
glVertex2i(x,y);
}
radio = radio-10;
}
glEnd();
radio = 200;
glBegin(GL_POINTS);
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
x = radio*cos(i)+ 160;
y = radio*sin(i) + 120;
glVertex2i(x,y);
}
radio = radio-10;
}
glEnd();
radio = 200;
glBegin(GL_POINTS);
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
x = radio*cos(i)+ 100;
y = radio*sin(i) + 175;
glVertex2i(x,y);
}
radio = radio-10;
}
glEnd();
//CIRCULO BLANCO
glPointSize(2);
glColor3f(255.0,255.0,255.0);
glBegin(GL_POINTS);
radio = 200;
while(radio >= 80)
{
for(int i=0; i < 360; i =i + 1)
{
x = radio*cos(i)+10;
y = radio*sin(i) + 198;
glVertex2i(x,y);
}
radio = radio-1;
}
glEnd();
//CIRCULITO BLANCO
glPointSize(5);
glColor3f(255.0,255.0,255.0);
glBegin(GL_POINTS);
radio = 0;
while(radio <= 80)
{
for(int i=0; i < 360; i =i + 1)
{
x = radio*cos(i)-10;
y = radio*sin(i) - 200;
glVertex2i(x,y);
}
radio = radio+ 10;
}
glEnd();
glFlush();
}
int main(int argc, char **argv)
{
glutInit(&argc,argv);
//glutInitDisplayMode(GLUTH_SINGLE|GLUT_RGB);
glutInitWindowSize(700,700);
glutInitWindowPosition(10,50);
glutCreateWindow("YIN-YANG");
glClearColor(255.0,255.0,255.0,0);
gluOrtho2D(-700,700,-700,700); // medida de la pantalla en X va de -640,640 y Y 0 a 480
glutDisplayFunc(display);
glutMainLoop();
return 0;
}
DOMINOS
/*JUAN ANGEL ORTIZ CONTRERAS */
#include <windows.h>
#include <C:\GLUT\include\GL\glut.h>
#include <stdlib.h>
#include <math.h>
void display(void)
{
glClear(GL_COLOR_BUFFER_BIT);
int x,y;
glPointSize(10);
glColor3f(0.0,0.0,255.0);
//azul
glBegin(GL_TRIANGLE_STRIP);
x =1;
y = 150;
glVertex2i(x,y);
x =150;
y = 1;
glVertex2i(x,y);
x =300;
y =150;
glVertex2i(x,y);
x =150;
y =300;
glVertex2i(x,y);
x =1;
y = 150;
glVertex2i(x,y);
glEnd();
//CIRCULO AZUL
int a=0;
int b=0;
glPointSize(5);
glColor3f(255.0,255.0,255.0);
glBegin(GL_POINTS);
double radio = 35;
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
a = radio*cos(i)+80;
b = radio*sin(i)+150;
glVertex2i(a,b);
}
radio = radio - 1;
}
glBegin(GL_POINTS);
radio = 35;
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
a = radio*cos(i)+ 220;
b = radio*sin(i)+150;
glVertex2i(a,b);
}
radio = radio - 1;
}
glEnd();
//RECTANGULO ROJO
glPointSize(10);
glColor3f(210.0,0.0,0.0);
glBegin(GL_TRIANGLE_STRIP);
x =325;
y =175;
glVertex2i(x,y);
x =474;
y =324;
glVertex2i(x,y);
x =324;
y =474;
glVertex2i(x,y);
x =175;
y =325;
glVertex2i(x,y);
x =325;
y =175;
glVertex2i(x,y);
glEnd();
//CIRCULO ROJO
a=0;
b=0;
glPointSize(5);
glColor3f(255.0,255.0,255.0);
glBegin(GL_POINTS);
radio = 35;
while(radio >= 0)
{
for(int i=0; i < 360; i =i + 1)
{
a = radio*cos(i)+ 324;
b = radio*sin(i)+ 324;
glVertex2i(a,b);
}
radio = radio - 1;
}
glEnd();
glFlush();
}
int main(int argc, char **argv)
{
glutInit(&argc,argv);
//glutInitDisplayMode(GLUTH_SINGLE|GLUT_RGB);
glutInitWindowSize(700,700);
glutInitWindowPosition(10,50);
glutCreateWindow("Dominos");
glClearColor(255.0,255.0,255.0,0);
gluOrtho2D(0,700,0,700); // medida de la pantalla en X va de -640,640 y Y 0 a 480
glutDisplayFunc(display);
glutMainLoop();
return 0;
}
MITSUBISHI
/* JUAN ANGEL ORTIZ CONTRERAS */
#include <windows.h>
#include <C:\GLUT\include\GL\glut.h>
#include <stdlib.h>
#include <math.h>
float pi = 3.14159265;
void display(void)
{
glClear(GL_COLOR_BUFFER_BIT);
int y=0;
int x=0;
glPointSize(5);
glColor3f(210.0,0.0,0.0);
glBegin(GL_TRIANGLE_STRIP);
x =1;
y = 1;
glVertex2i(x,y);
x =5;
y = 1;
glVertex2i(x,y);
x =7;
y = 4;
glVertex2i(x,y);
x =3;
y = 4;
glVertex2i(x,y);
x =1;
y = 1;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLE_STRIP);
x =9;
y = 1;
glVertex2i(x,y);
x =13;
y = 1;
glVertex2i(x,y);
x =11;
y = 4;
glVertex2i(x,y);
x =7;
y = 4;
glVertex2i(x,y);
x =9;
y = 1;
glVertex2i(x,y);
glEnd();
glBegin(GL_TRIANGLE_STRIP);
x =7;
y = 4;
glVertex2i(x,y);
x =9;
y = 7;
glVertex2i(x,y);
x =7;
y = 10;
glVertex2i(x,y);
x =5;
y = 7;
glVertex2i(x,y);
x =7;
y = 4;
glVertex2i(x,y);
glEnd();
glFlush();
}
int main(int argc, char **argv)
{
glutInit(&argc,argv);
//glutInitDisplayMode(GLUTH_SINGLE|GLUT_RGB);
glutInitWindowSize(600,600);
glutInitWindowPosition(10,50);
glutCreateWindow("Mi primera venatana");
glClearColor(255.0,255.0,255.0,0);
gluOrtho2D(0,14,0,14); // medida de la pantalla en X va de -640,640 y Y 0 a 480
glutDisplayFunc(display);
glutMainLoop();
return 0;
}
Suscribirse a:
Entradas (Atom)
